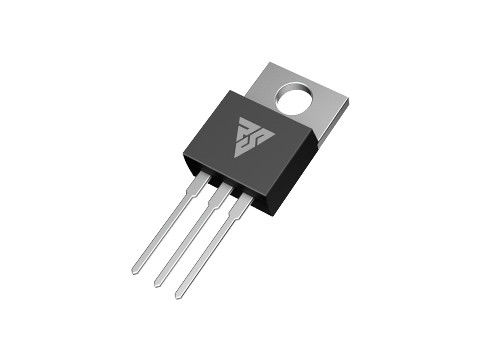

Motor Driver Low Voltage Fet Stable For High Frequency Switch

  • Motor Driver Low Voltage Fet Stable For High Frequency Switch
Place of Origin Guangdong, CN
Brand Name REASUNOS
Price Confirm price based on product
Packaging Details Dustproof, waterproof, and anti-static tubular packaging, placed inside a cardboard box in cartons
Delivery Time 2-30 days (Depends on Total Quantity)
Payment Terms 100% T/T in Advance(EXW)
Supply Ability 5KK/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Efficiency High Efficiency And Reliable EAS Capability High EAS Capability
Resistance Low Rds(ON) Trench Process Application Wireless Charging, Fast Charging, Motor Driver, DC/DC Converter, High-frequency Switch, Synchronous Rectification.
Power Consumption Low Power Loss Product Name Low Voltage MOSFET
Trench Process Advantages Smaller RSP, Both Series And Parallel Configurations Can Be Freely Combined And Utilized. SGT Process Application Motor Driver, 5G Base Station, Energy Storage, High-frequency Switch, Synchronous Rectification.
Highlight

Motor Driver Low Voltage Fet

,

Low Voltage Fet Stable

,

Switch Low Power Fet
You can tick the products you need and communicate with us in the message board.
No. Part No. Type ID(A) VDSS(V) RDS(ON) Typ(mΩ) RDS(ON) Max(mΩ) Package MOQ(pcs)
1 RS2301E P -2.3 -20 70 110 SOT-23 3000
2 RS3415E P -4 -20 33 50 SOT-23 3000
3 RS2302E N 2.1 20 32 45 SOT-23 3000
4 RS2300E N 4.5 20 21 32 SOT-23 3000
5 RS2N7002E N 0.34 60 1300 5000 SOT-23 3000
6 RS20N90D N 90 20 3.7 5 TO-252 2500
7 RS3401E P -4.2 -30 50 65 SOT-23 3000
8 RS4435 P -10 -30 15 20 SOP-8 4000
9 RS3400E N 5.8 30 27 35 SOT-23 3000
10 RS30N30K N 30 30 5.8 9 DFN3*3 5000
11 RS30N50K N 50 30 3.8 5.5 DFN3*3 5000
12 RS30N60D N 60 30 6.2 7.5 TO-252 2500
13 RS30N86D N 86 30 4.7 5.5 TO-252 2500
14 RS30N120G N 120 30 3 4 DFN5*6 5000
15 RS30N150D N 150 30 3 4 TO-252 2500
16 RS30N150T N 150 30 3 4 TO-220 1000
17 RS40N100G N 100 40 2.8 3.5 DFN5*6 5000
18 RS40N120D N 120 40 2.8 3.5 TO-252 2500
19 RS40N120T N 120 40 2.8 3.5 TO-220 1000
20 RS150N105T N 105 150 9.8 11 TO-220 1000
21 RS76N20T N 76 200 17 20 TO-220 1000
22 RS2310E N 3 60 70 105 SOT-23 3000
23 RS60N30D N 30 60 22 35 TO-252 2500
24 RS60N50D N 50 60 14 22 TO-252 2500
25 RS60N50T N 50 60 14 22 TO-220 1000
26 RS80N25W N 80 250 30 35 TO-247 600
27 RS630D N 9 200 250 300 TO-252 2500
28 RS630T N 9 200 250 300 TO-220 1000
29 RS640D N 18 200 120 150 TO-252 2500
30 RS640T N 18 200 120 150 TO-220 1000
31 RS40N130G N 130 40 1.45 1.75 DFN5*6 5000
32 RS40N180T N 180 40 1.6 2 TO-220 1000
33 RS60N130G N 130 60 2.1 2.5 DFN5*6 5000
34 RS60N200T N 200 60 2.5 3.2 TO-220 1000
35 RS85N140T N 140 85 4.5 5.3 TO-220 1000
36 RS85N140S N 140 85 4.5 5.3 TO-263 800
37 RS85N150T N 150 85 2.8 3.6 TO-220 1000
38 RS85N150S N 150 85 2.7 3.4 TO-263 800
39 RS100N78HT N 78 100 8.2 9.5 TO-220 1000
40 RS100N78T N 78 100 8.2 9.5 TO-220 1000
41 RS100N100T N 100 100 7 8.5 TO-220 1000
42 RS100N135T N 135 100 3.7 4.2 TO-220 1000
43 RS100N135HT N 135 100 3.7 4.2 TO-220 1000
44 RS100N135HS N 135 100 4.2 5 TO-263 800
45 RS100N180T N 180 100 3 3.8 TO-220 1000
46 RS100N180S N 180 100 2.9 3.6 TO-263 800
47 RS100N190T N 190 100 2.3 3 TO-220 1000
48 RS100N190S N 190 100 2.2 2.8 TO-263 800
49 RS110N200T N 200 110 3.4 4 TO-220 1000
50 RS110N200S N 200 110 3.4 4 TO-263 800
51 RS100N210S N 200 100 1.9 2.4 TO-263 800
52 RS100N210T N 210 100 1.9 2.4 TO-220 1000
53 RS100N300I N 300 100 1.7 2.2 TOLL 2000
54 RS100N60G N 60 100 7.5 8.5 DFN5*6 5000
55 RS100N60HG N 60 100 7.5 8.5 DFN5*6 5000
56 RS100N85G N 85 100 6 7.5 DFN5*6 5000
57 RS100N85HG N 85 100 6 7.5 DFN5*6 5000
58 RS100N125G N 125 100 4 4.6 DFN5*6 5000
59 RS100N125HG N 125 100 4 4.6 DFN5*6 5000
60 RS100N150HG N 150 100 3.5 4.2 DFN5*6 5000
Leave a Message
No. Part No. Type ID(A) VDSS(V) RDS(ON) Typ(mΩ) RDS(ON) Max(mΩ) Package MOQ(pcs)
Product Description

High EAS Capability Low Rds(ON) MOSFET for High-frequency Switch Application

Product Description:

Low Voltage MOSFET is a revolutionary product that provides outstanding performance in various applications, such as wireless charging, fast charging, motor driver, DC/DC converter, high-frequency switch, and synchronous rectification. It has excellent low gate voltage and low Rds(ON), enabling low power loss and high EAS capability. It also adopts breakthrough FOM optimization and covers more applications with the help of the trench process and SGT process.



Technical Parameters:

Product Name Parameters
Low Voltage MOSFET SGT Process Advantages: Breakthrough FOM Optimization,Covering More Application.
Low Voltage MOSFET Efficiency: High Efficiency And Reliable
Low Voltage MOSFET Trench Process Application: Wireless Charging, Fast Charging, Motor Driver, DC/DC Converter, High-frequency Switch, Synchronous Rectification
Low Voltage MOSFET Trench Process Advantages: Smaller RSP, Both Series And Parallel Configurations Can Be Freely Combined And Utilized.
Low Voltage MOSFET Resistance: Low Rds(ON)
Low Voltage MOSFET Structure Process: Trench/SGT
Low Voltage MOSFET EAS Capability: High EAS Capability
Low Voltage MOSFET Power Consumption: Low Power Loss
Low Voltage MOSFET SGT Process Application: Motor Driver, 5G Base Station, Energy Storage, High-frequency Switch, Synchronous Rectification


Applications:

REASUNOS Low Voltage MOSFET

REASUNOS Low Voltage MOSFET is a unique and powerful device from Guangdong, China. It is suitable for various applications due to its low gate voltage, low power loss, and high EAS capability. It also has a Trench/SGT structure process, which makes it suitable for Wireless Charging, Fast Charging, Motor Driver, DC/DC Converter, High-frequency Switch, and Synchronous Rectification. The price of the product is determined based on the product. It is packaged in dustproof, waterproof, and anti-static tubular packaging, and placed inside a cardboard box in cartons. The delivery time is between 2-30 days, depending on the total quantity. The payment terms are 100% T/T in Advance. The supply ability is up to 5KK/month.



Support and Services:

Low Voltage MOSFET Technical Support and Service

We provide a comprehensive range of technical support and service for Low Voltage MOSFET products. Our team of experienced engineers are available to answer any questions and provide assistance with product selection, design and troubleshooting.

Technical Support

Our team of engineers is available to answer any technical questions you may have regarding Low Voltage MOSFET products. We can provide guidance on product selection, design advice, application assistance, and troubleshooting support.

Product Selection Assistance

We can help you choose the right Low Voltage MOSFET for your application. Our engineers can provide guidance on part selection, design considerations, and performance requirements.

Design Guidance

We can provide design assistance to help you create the optimal design for your application. Our engineers can provide advice on circuit design, component selection, and layout.

Troubleshooting Support

If you are experiencing issues with your Low Voltage MOSFET, our engineers are available to provide troubleshooting support. We can help you identify and resolve any problems you may be having.



Packing and Shipping:

Low Voltage MOSFET Packaging and Shipping:

Low Voltage MOSFETs should be packaged in an anti-static bag to prevent damage from electrostatic discharge. The bag should then be placed in a sturdy cardboard box with protective padding to prevent shocks and impacts during shipping. The box should be clearly labeled with the product name, address of the recipient, and shipping address.



FAQ:

  • Q: What is REASUNOS Low Voltage MOSFET?
  • A: REASUNOS Low Voltage MOSFET is a metal oxide semiconductor field effect transistor (MOSFET) component that operates at low voltages.
  • Q: Where is REASUNOS Low Voltage MOSFET manufactured?
  • A: REASUNOS Low Voltage MOSFET is manufactured in Guangdong, China.
  • Q: What is the price of REASUNOS Low Voltage MOSFET?
  • A: The price of REASUNOS Low Voltage MOSFET is based on the product. Please contact us for details.
  • Q: How is REASUNOS Low Voltage MOSFET packaged?
  • A: REASUNOS Low Voltage MOSFET is packaged in dustproof, waterproof, and anti-static tubular packaging, placed inside a cardboard box in cartons.
  • Q: How long is the delivery time for REASUNOS Low Voltage MOSFET?
  • A: The delivery time for REASUNOS Low Voltage MOSFET is 2-30 days, depending on the total quantity.
Tags:

N Channel Mosfet Low Threshold Voltage

Stable Low Power P Channel Mosfet

Base Station Low Voltage MOSFET
