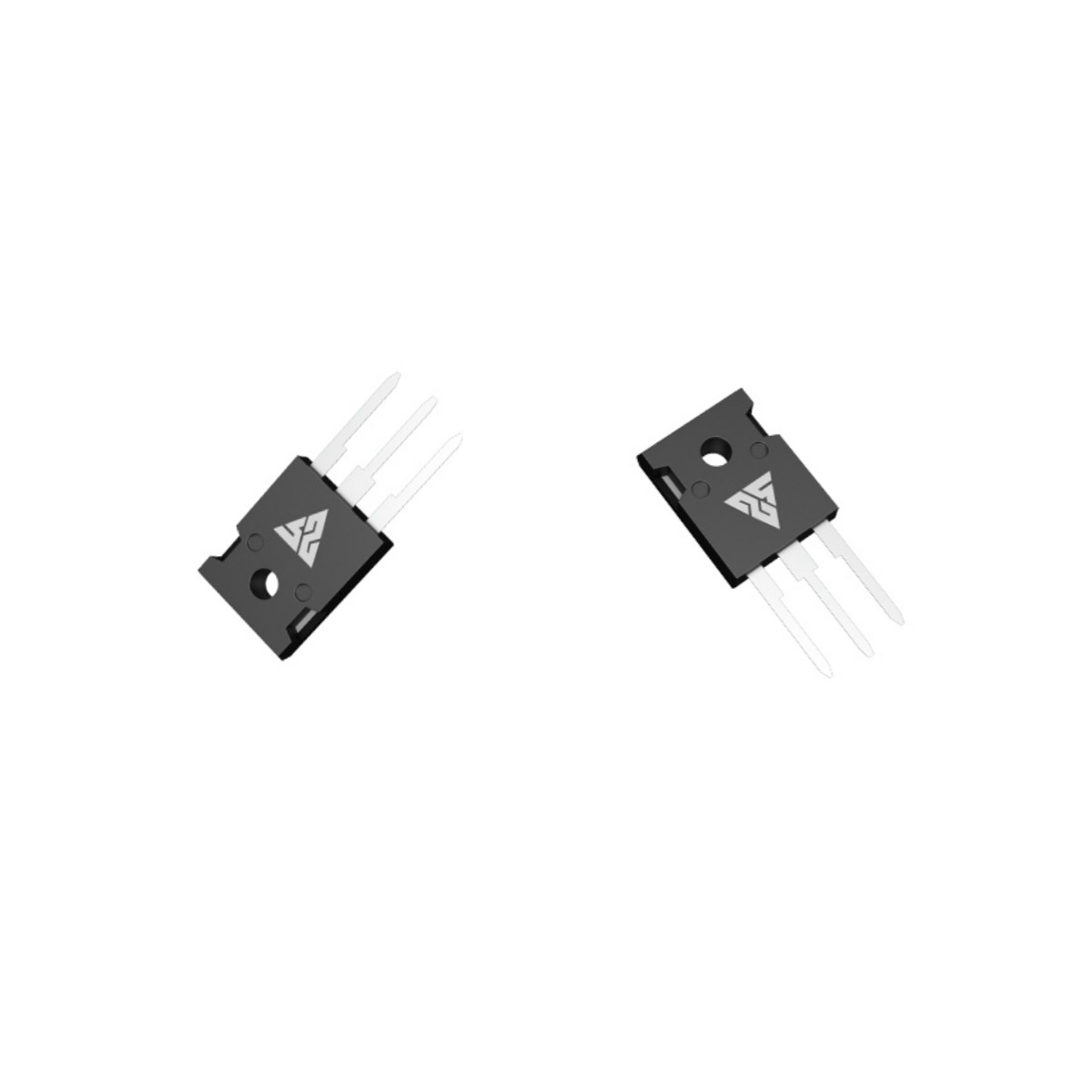

Industrial SiC Carbide Mosfet Switching Frequency Durable Heatproof

Place of Origin Guangdong, CN
Brand Name REASUNOS
Minimum Order Quantity 600
Price Confirm price based on product
Packaging Details Dustproof, waterproof, and anti-static tubular packaging, placed inside a cardboard box in cartons.
Delivery Time 2-30 days (Depends on Total Quantity)
Payment Terms 100% T/T in Advance(EXW)
Supply Ability 5KK/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Efficiency High Efficiency Material Silicon Carbide
Device Type MOSFET Resistance Low On Resistance
Power High Power Type N
Product Name Silicon Carbide MOSFET Application Solar Inverter, High-voltage DC/DC Converter, Motor Driver, UPS Power Supply, Switching Power Supply, Charging Pile, Etc.
High Light

Industrial Si Carbide Mosfet

,

Si Carbide Mosfet Durable

,

Heatproof Sic Mosfet Switching Frequency

You can tick the products you need and communicate with us in the message board.
No. Part No. Type ID(A) VDSS(V) RDS(ON) Typ(mΩ) RDS(ON) Max(mΩ) Package MOQ(pcs)
1 RSM065030W N 55 650 30 50 TO247-3 600
2 RSM065030Z N 55 650 30 50 TO247-4 600
3 RSM065060W N 29 650 60 79 TO247-3 600
4 RSM065060Z N 29 650 60 79 TO247-4 600
5 RSM120018Z N 105 1200 18 26 TO247-4 600
6 RSM120025W N 90 1200 25 34 TO247-3 600
7 RSM120025Z N 90 1200 25 34 TO247-4 600
8 RSM120040W N 68 1200 40 55 TO247-3 600
9 RSM120040Z N 68 1200 40 55 TO247-4 600
10 RSM120075W N 33 1200 75 95 TO247-3 600
11 RSM120075Z N 33 1200 75 95 TO247-4 600
12 RSM120080W N 36 1200 80 98 TO247-3 600
13 RSM120080Z N 36 1200 80 98 TO247-4 600
14 RSM120160W N 18 1200 160 196 TO247-3 600
15 RSM120160Z N 18 1200 160 196 TO247-4 600
16 RSM1701K0W N 5 1700 1000 1300 TO247-3 600
17 RSM1701K0Z N 5 1700 1000 1300 TO247-4 600
18 RSM170045W N 72 1700 45 70 TO247-3 600
19 RSM170045Z N 72 1700 45 70 TO247-4 600
Leave a Message
No. Part No. Type ID(A) VDSS(V) RDS(ON) Typ(mΩ) RDS(ON) Max(mΩ) Package MOQ(pcs)
Product Description

High Frequency Silicon Carbide MOSFET Device for Industrial Applications

Product Description:

Silicon Carbide (SiC) Metal-Oxide-Semiconductor Field Effect Transistors (MOSFETs) are advanced power semiconductors which provide high power and high frequency capabilities for a variety of applications, including solar inverters, high-voltage DC/DC converters, motor drivers, UPS power supplies, switching power supplies, and charging piles. SiC MOSFETs possess high power efficiency, low switching losses, low gate charge, low on-state resistance, and superior thermal and frequency characteristics when compared to traditional silicon-based MOSFETs.

SiC MOSFETs are manufactured based on the national military standard production line, ensuring process stability and reliable quality. These power semiconductors are capable of withstanding high voltages while providing excellent performance and reliability. Moreover, SiC MOSFETs offer improved thermal performance and higher frequency operation when compared to conventional silicon devices.

SiC MOSFETs are capable of operating at high frequencies and high temperatures, making them suitable for a wide range of applications. They are ideal for high power operations, as they offer superior power efficiency, low switching losses, and low on-state resistance. Additionally, SiC MOSFETs are capable of withstanding high voltages and are highly reliable due to their production process based on the national military standard.



Technical Parameters:

Property Description
Product Name Silicon Carbide MOSFET
Advantages Based on the national military standard production line, the process is stable and the quality is reliable
Type N
Application Solar Inverter, High-Voltage DC/DC Converter, Motor Driver, UPS Power Supply, Switching Power Supply, Charging Pile, etc.
Power High Power
Resistance Low On Resistance
Efficiency High Efficiency
Device Type MOSFET (Metal-Oxide-Semiconductor Field Effect Transistor)
Frequency High Frequency
Material Silicon Carbide


Applications:

Silicon Carbide MOSFET from REASUNOS is a metal oxide semiconductor field effect transistor based on silicon carbide, featuring high power, low on resistance, and wide range of applications. This Silicon Carbide Field Effect Transistor offers a perfect combination of high efficiency, high switching frequency, and low on-resistance for various applications such as solar inverter, high-voltage DC/DC converter, motor driver, UPS power supply, switching power supply, charging pile and other applications. It has a minimum order quantity of 600, and the price is confirmed based on product. It is packed in dustproof, waterproof, and anti-static tubular packaging, which is placed inside a cardboard box in cartons. Delivery time is usually within 2-30 days depending on the total quantity. Payment terms are 100% T/T in advance (EXW). This Silicon Carbide MOSFET has a supply ability of 5KK/month.



Support and Services:

Silicon Carbide MOSFET products come with a full suite of technical support and services, including:

  • Technical Assistance
  • Product Selection Assistance
  • Component Testing and Qualification
  • Design and Application Support
  • Software Updates
  • Firmware Updates
  • Field Service
  • Training
  • Troubleshooting
  • RMA/Return Services


Packing and Shipping:

Silicon Carbide MOSFET is packaged in an ESD-safe bag and shipped in an anti-static box. The box is labeled with the required product information, such as product name, order number, and purchase date. The box also contains a warning label indicating that the product should be handled with care. The box is then sealed with a tamper-evident seal.



FAQ:

Q1: What is REASUNOS Silicon Carbide MOSFET?

A1: REASUNOS Silicon Carbide MOSFET is a transistor that uses silicon carbide as the semiconductor material. It is used in power electronics and automotive applications due to its high switching frequency, low on-resistance, and excellent thermal performance.

Q2: What is the minimum order quantity for REASUNOS Silicon Carbide MOSFET?

A2: The minimum order quantity for REASUNOS Silicon Carbide MOSFET is 600.

Q3: What is the price for REASUNOS Silicon Carbide MOSFET?

A3: The price for REASUNOS Silicon Carbide MOSFET varies based on the product. Please contact us for a quote.

Q4: What is the delivery time for REASUNOS Silicon Carbide MOSFET?

A4: The delivery time for REASUNOS Silicon Carbide MOSFET is 2-30 days, depending on the total quantity.

Q5: What are the payment terms for REASUNOS Silicon Carbide MOSFET?

A5: The payment terms for REASUNOS Silicon Carbide MOSFET are 100% T/T in advance (EXW).
