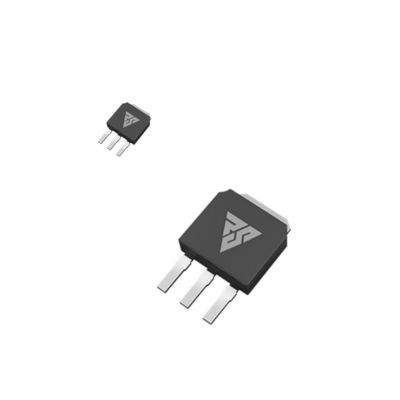

Power Supply High Voltage MOSFET Practical Low On Resistance For Adaptors
Place of Origin | Guangdong, CN |
---|---|
Brand Name | REASUNOS |
Price | Confirm price based on product |
Packaging Details | Dustproof, waterproof, and anti-static tubular packaging, placed inside a cardboard box in cartons |
Delivery Time | 2-30 days (Depends on Total Quantity) |
Payment Terms | 100% T/T in Advance(EXW) |
Supply Ability | 5KK/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xLeakage | Low Leakage Can Reach Less Than 1 µ A | HV Mosfet Application | LED Driver, Adaptors, Industrial Switching Power Supply, Inverters Etc |
---|---|---|---|
Technology | MOSFET | Resistance | Low On-resistance |
Ultra-HV MOSFET Application | Smart Meter, Cabinet Power Supply, Industrial Switching Power Supply, Electrical Power System, Etc. | Product Name | High Voltage MOSFET |
Embedded FRD HV MOSFET Application | Motor Series, Inverter, Half Bridge/full Bridge Circuit Applications, Etc. | Type | N |
High Light | Power Supply High Voltage MOSFET,High Voltage MOSFET Practical,Adaptors Mosfet In Series High Voltage |
No. | Part No. | Type | ID(A) | VDSS(V) | RDS(ON) Typ(mΩ) | RDS(ON) Max(mΩ) | Package | MOQ(pcs) | Diode Trr(nS) | |
---|---|---|---|---|---|---|---|---|---|---|
1 | RSF38N30F | N | 38 | 300 | 0.09 | 0.11 | TO-220F | 1000 | 80 | |
2 | RSF45N50W | N | 45 | 500 | 0.1 | 0.125 | TO-247 | 600 | 95 | |
3 | RSF5N50D | N | 5 | 500 | 1.5 | 1.85 | TO-252 | 2500 | 61 | |
4 | RSF7N50D | N | 7 | 500 | 1.1 | 1.5 | TO-252 | 2500 | 100 | |
5 | RSF3N60D | N | 3 | 600 | 2.8 | 3.4 | TO-252 | 2500 | 55 | |
6 | RSF4N60D | N | 4 | 600 | 2 | 2.4 | TO-252 | 2500 | 60 | |
7 | RSF4N60F | N | 4 | 600 | 2 | 2.4 | TO-220F | 1000 | 60 | |
8 | RS2N65D | N | 2 | 650 | 3.8 | 4.5 | TO-252 | 2500 | -- | |
9 | RS2N65F | N | 2 | 650 | 3.8 | 4.5 | TO-220F | 1000 | -- | |
10 | RS4N65D | N | 4 | 650 | 2 | 2.4 | TO-252 | 2500 | -- | |
11 | RS4N65MD | N | 4 | 650 | 2 | 2.4 | TO-251 | 4000 | -- | |
12 | RS4N65F | N | 4 | 650 | 2 | 2.4 | TO-220F | 1000 | -- | |
13 | RS5N65D | N | 5 | 650 | 1.8 | 2.1 | TO-252 | 2500 | -- | |
14 | RS5N65F | N | 5 | 650 | 1.8 | 2.1 | TO-220F | 1000 | -- | |
15 | RS6N65D | N | 6 | 650 | 1.65 | 1.9 | TO-252 | 2500 | -- | |
16 | RS6N60F | N | 6 | 600 | 1 | 1.15 | TO-220F | 1000 | -- | |
17 | RS6N65F | N | 6 | 650 | 1.65 | 1.9 | TO-220F | 1000 | -- | |
18 | RS7N65D | N | 7 | 650 | 1.1 | 1.4 | TO-252 | 2500 | -- | |
19 | RS7N65MD | N | 7 | 650 | 1.1 | 1.4 | TO-251 | 4000 | -- | |
20 | RS7N65F | N | 7 | 650 | 1.1 | 1.4 | TO-220F | 1000 | -- | |
21 | RS8N60F | N | 8 | 600 | 0.75 | 0.9 | TO-220F | 1000 | -- | |
22 | RS8N65F | N | 8 | 650 | 0.95 | 1.15 | TO-220F | 1000 | -- | |
23 | RS10N65D | N | 10 | 650 | 0.93 | 1.05 | TO-252 | 2500 | -- | |
24 | RS10N65F | N | 10 | 650 | 0.65 | 0.8 | TO-220F | 1000 | -- | |
25 | RS10N60F | N | 10 | 600 | 0.6 | 0.72 | TO-220F | 1000 | -- | |
26 | RS12N65F | N | 12 | 650 | 0.6 | 0.72 | TO-220F | 1000 | -- | |
27 | RS12N60F | N | 12 | 600 | 0.5 | 0.62 | TO-220F | 1000 | -- | |
28 | RS13N65F | N | 13 | 650 | 0.52 | 0.65 | TO-220F | 1000 | -- | |
29 | RS16N65F | N | 16 | 650 | 0.45 | 0.55 | TO-220F | 1000 | -- | |
30 | RS20N65F | N | 20 | 650 | 0.35 | 0.45 | TO-220F | 1000 | -- | |
31 | RS5N50D | N | 5 | 500 | 1.25 | 1.45 | TO-252 | 2500 | -- | |
32 | RS6N50D | N | 6 | 500 | 1.2 | 1.5 | TO-252 | 2500 | -- | |
33 | RS9N50D | N | 9 | 500 | 0.65 | 0.8 | TO-252 | 2500 | -- | |
34 | RS9N50F | N | 9 | 500 | 0.65 | 0.8 | TO-220F | 1000 | -- | |
35 | RS10N50F | N | 10 | 500 | 0.66 | 0.8 | TO-220F | 1000 | -- | |
36 | RS11N50F | N | 11 | 500 | 0.48 | 0.6 | TO-220F | 1000 | -- | |
37 | RS13N50F | N | 13 | 500 | 0.39 | 0.46 | TO-220F | 1000 | -- | |
38 | RS15N50F | N | 15 | 500 | 0.35 | 0.42 | TO-220F | 1000 | -- | |
39 | RS18N50F | N | 18 | 500 | 0.28 | 0.34 | TO-220F | 1000 | -- | |
40 | RS20N50F | N | 20 | 500 | 0.21 | 0.27 | TO-220F | 1000 | -- | |
41 | RS20N50W | N | 20 | 500 | 0.21 | 0.27 | TO-247-3 | 600 | -- | |
42 | RS25N50F | N | 25 | 500 | 0.18 | 0.24 | TO-220F | 1000 | -- | |
43 | RS25N50W | N | 25 | 500 | 0.18 | 0.24 | TO-247-3 | 600 | -- | |
44 | RS28N50W | N | 28 | 500 | 0.14 | 0.18 | TO-247-3 | 600 | -- | |
45 | RS30N50W | N | 30 | 500 | 0.085 | 0.12 | TO-247-3 | 600 | -- | |
46 | RS4N80F | N | 4 | 800 | 3.2 | 3.8 | TO-220F | 1000 | -- | |
47 | RS8N80F | N | 8 | 800 | 1.35 | 1.6 | TO-220F | 1000 | -- | |
48 | RS10N80F | N | 10 | 800 | 1 | 1.2 | TO-220F | 1000 | -- | |
49 | RS3N90MD | N | 3 | 900 | 4 | 4.8 | TO-251 | 4000 | -- | |
50 | RS4N90D | N | 4 | 900 | 3 | 3.5 | TO-252 | 2500 | -- | |
51 | RS4N90F | N | 4 | 900 | 3 | 3.5 | TO-220F | 1000 | -- | |
52 | RS6N90F | N | 6 | 900 | 1.7 | 2.05 | TO-220F | 1000 | -- | |
53 | RS9N90F | N | 9 | 900 | 1.2 | 1.55 | TO-220F | 1000 | -- | |
54 | RS9N90PF | N | 9 | 900 | 1.2 | 1.55 | TO-3PF | 300 | -- | |
55 | RS2N100D | N | 2 | 1000 | 6 | 7.2 | TO-252 | 2500 | -- | |
56 | RSE3N100F | N | 3 | 1000 | 4.6 | 5.5 | TO-220F | 1000 | -- | |
57 | RS6N100F | N | 6 | 1000 | 1.2 | 1.5 | TO-220F | 1000 | -- | |
58 | RS2N120D | N | 2 | 1200 | 10.5 | 12.5 | TO-252 | 2500 | -- | |
59 | RS3N120D | N | 3 | 1200 | 7.3 | 8.5 | TO-252 | 2500 | -- | |
60 | RS6N120T | N | 6 | 1200 | 2.1 | 2.5 | TO-220 | 1000 | -- | |
61 | RS3N150F | N | 3 | 1500 | 5.5 | 6.5 | TO-220F | 1000 | -- | |
62 | RS3N150PF | N | 3 | 1500 | 5.5 | 6.5 | TO-3PF | 300 | -- | |
63 | RS3N150W | N | 3 | 1500 | 5.5 | 6.5 | TO247-3 | 600 | -- |
High Voltage MOSFET Transistor for Adaptors Application Technology
Product Description:
High Voltage MOSFET is a kind of MOSFET transistor designed for high voltage application. It is suitable for Motor Series, Inverter, Half Bridge/full Bridge Circuit Applications, LED Driver, Adaptors, Industrial Switching Power Supply, Inverter and other applications. The High Voltage MOSFET is of N type, with low leakage and low on-resistance. It can reach less than 1μA of leakage, which is very low compared to other MOSFET transistors. This product is highly reliable and suitable for high voltage applications.
Technical Parameters:
Property | Value |
---|---|
Resistance | Low On-resistance |
Heat Dissipation | Great Heat Dissipation |
Type | N |
Ultra-HV MOSFET Application | Smart Meter, Cabinet Power Supply, Industrial Switching Power Supply, Electrical Power System, Etc. |
Product Name | High Voltage MOSFET |
Advantages | New Lateral Variable Doping Technology, Special Power MOS Structure, Excellent Characteristics In High-temperature. |
Leakage | Low Leakage Can Reach Less Than 1 µ A |
Technology | MOSFET |
Embedded FRD HV MOSFET Application | Motor Series, Inverter, Half Bridge/full Bridge Circuit Applications, Etc. |
Voltage Rating | High Voltage/Ultra-high Voltage |
Applications:
Brand Name: REASUNOS
Place of Origin: Guangdong, CN
Price: Confirm price based on product
Packaging Details: Dustproof, waterproof, and anti-static tubular packaging, placed inside a cardboard box in cartons
Delivery Time: 2-30 days (Depends on Total Quantity)
Payment Terms: 100% T/T in Advance(EXW)
Supply Ability: 5KK/month
REASUNOS Embedded FRD Ultra-High Voltage MOSFET is designed for smart meter, cabinet power supply, industrial switching power supply, electrical power system, etc. Its advantages are new lateral variable doping technology, special power MOS structure, excellent characteristics in high-temperature, and low leakage can reach less than 1 µ A. It also has a wide voltage rating of high voltage or ultra-high voltage.
Support and Services:
Our team of engineers provides technical support for High Voltage MOSFET products to ensure your applications are successful and your products are reliable.
We offer a variety of services, including:
- Design support
- Product selection and evaluation
- Prototype testing and analysis
- Application training
- Failure analysis
- Quality assurance
We are committed to providing our customers with the best technical support and customer service.
Packing and Shipping:
Packaging and Shipping for High Voltage MOSFET:
The High Voltage MOSFET is packaged in an anti-static bag and sealed in a shipping box to protect the product from shocks and other damage during shipping. The shipping box is secured with bubble wrap and/or foam to provide additional protection. The box also includes the necessary documentation for the product. The product is shipped with a tracking number and insured for any damage that may occur during shipment.
FAQ:
A1: The brand name of the High Voltage MOSFET is REASUNOS.
A2: The High Voltage MOSFET is made in Guangdong, China.
A3: The price of the High Voltage MOSFET is Confirm price based on product.
A4: The High Voltage MOSFET will be packaged in dustproof, waterproof, and anti-static tubular packaging, placed inside a cardboard box in cartons.
A5: It will take 2-30 days to deliver the High Voltage MOSFET, depending on the total quantity.
