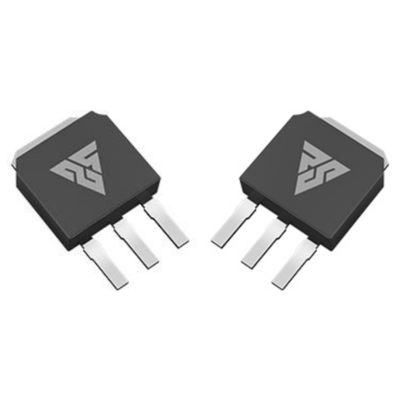

REACH High Current Power Mosfet , Stable N Channel Metal Oxide Semiconductor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xType | N | Product Name | High Power MOSFET |
---|---|---|---|
Frequency | High Frequency | Power | High Power |
Resistance | Low On Resistance | Device Type | MOSFET |
Application | Solar Inverter, High-voltage DC/DC Converter, Motor Driver, UPS Power Supply, Switching Power Supply, Charging Pile, Etc. | Advantages | Based On The National Military Standard Production Line, The Process Is Stable And The Quality Is Reliable |
High Light | REACH High Current Power Mosfet,N Channel High Current Power Mosfet,Stable N Channel Metal Oxide Semiconductor |
No. | Part No. | Type | ID(A) | VDSS(V) | RDS(ON) Typ(mΩ) | RDS(ON) Max(mΩ) | Package | MOQ(pcs) | |
---|---|---|---|---|---|---|---|---|---|
1 | RSM065030W | N | 55 | 650 | 30 | 50 | TO247-3 | 600 | |
2 | RSM065030Z | N | 55 | 650 | 30 | 50 | TO247-4 | 600 | |
3 | RSM065060W | N | 29 | 650 | 60 | 79 | TO247-3 | 600 | |
4 | RSM065060Z | N | 29 | 650 | 60 | 79 | TO247-4 | 600 | |
5 | RSM120018Z | N | 105 | 1200 | 18 | 26 | TO247-4 | 600 | |
6 | RSM120025W | N | 90 | 1200 | 25 | 34 | TO247-3 | 600 | |
1 | RSE60R190F | N | 17.6 | 600 | 165 | 190 | TO-220F | 1000 | |
2 | RSE60R190S | N | 17.6 | 600 | 165 | 190 | TO-263 | 800 | |
3 | RSE60R150F | N | 22 | 600 | 130 | 150 | TO-220F | 1000 | |
4 | RSF60R150F | N | 22 | 600 | 130 | 150 | TO-220F | 1000 | |
5 | RSF60R190F | N | 17.6 | 600 | 165 | 190 | TO-220F | 1000 | |
6 | RS60R130F | N | 30 | 600 | 110 | 130 | TO-220F | 1000 | |
7 | RS60R130W | N | 30 | 600 | 110 | 130 | TO247-3 | 600 | |
8 | RSF60R099F | N | 31 | 600 | 86 | 99 | TO-220F | 1000 | |
1 | RS2N65D | N | 2 | 650 | 3.8 | 4.5 | TO-252 | 2500 | |
2 | RS2N65F | N | 2 | 650 | 3.8 | 4.5 | TO-220F | 1000 | |
3 | RS4N65D | N | 4 | 650 | 2 | 2.4 | TO-252 | 2500 | |
4 | RS4N65MD | N | 4 | 650 | 2 | 2.4 | TO-251 | 4000 | |
5 | RS4N65F | N | 4 | 650 | 2 | 2.4 | TO-220F | 1000 | |
6 | RS5N65D | N | 5 | 650 | 1.8 | 2.1 | TO-252 | 2500 | |
7 | RS5N65F | N | 5 | 650 | 1.8 | 2.1 | TO-220F | 1000 |
Product Description:
High Power MOSFET is a type of high voltage FET (Field Effect Transistor) with a high power and low on-resistance. It features high efficiency and is suitable for a wide range of applications, such as solar inverter, high-voltage DC/DC converter, motor driver, UPS power supply, switching power supply, charging pile, etc. High Power MOSFET is a reliable, cost-effective solution for high voltage and high power applications. It is capable of providing excellent performance while minimizing switching losses. With its advanced design, it is able to reduce power consumption and increase system efficiency. High Power MOSFET is the ideal choice for high voltage, high power applications, and is the perfect choice for HV MOSFET, high voltage FET, and high power MOSFET applications.
Technical Parameters:
Product Name | Features |
---|---|
High Power MOSFET | Efficiency: High Efficiency Resistance: Low On Resistance Application: Solar Inverter, High-voltage DC/DC Converter, Motor Driver, UPS Power Supply, Switching Power Supply, Charging Pile, Etc. Power: High Power Frequency: High Frequency Device Type: MOSFET Type: N Advantages: Based On The National Military Standard Production Line, The Process Is Stable And The Quality Is Reliable |
Applications:
REASUNOS High Power MOSFET is a high-performance device designed to deliver high efficiency and high frequency in a wide range of applications. The device is capable of providing high voltage (HV) output and a high current output, making it ideal for a variety of power-related needs. With its high power efficiency, this MOSFET is perfect for applications such as power management, power conversion, and data acquisition. It also features a low on-resistance and low gate charge, allowing for high power density and low power consumption.
Some of the key features of REASUNOS High Power MOSFET include its high voltage output, high current output, high efficiency, high frequency, low on-resistance, low gate charge, and high power density. This device also offers great flexibility with its wide range of applications, such as power management, power conversion, and data acquisition. Additionally, the device comes with a competitive price and is available in GB+Master Carton packaging. The delivery time is between 2-30 days depending on the total quantity ordered and payment terms are 100% T/T in Advance (EXW). With a supply capacity of up to 5KK/month, REASUNOS High Power MOSFET is the perfect choice for anyone looking for an efficient and reliable HV MOSFET.
Support and Services:
We are proud to offer comprehensive technical support and service for our High Power MOSFET products. Our team of experienced engineers and technicians are available to assist with any technical questions or troubleshooting that may arise. Our technical support is available by phone, email, or through our online support portal.
We also provide a variety of training and educational resources to help customers learn more about our products and how to use them. Our online tutorials, webinars, and other educational materials provide an easy way for customers to learn more about our products and how to get the most out of them.
Of course, we also offer our customers the highest level of customer service. We understand that our products are critical components in our customers’ projects, and we strive to provide the best customer service experience possible. We are available to answer questions, provide assistance, and provide support whenever it is needed.
Packing and Shipping:
Packaging and shipping for High Power MOSFET:
- All products are packaged in a sealed anti-static bag with foam padding.
- Shipment is usually done through a reliable carrier such as FedEx, UPS or DHL.
- Tracking information will be provided as soon as the product is shipped.
FAQ:
- Q: What is the brand name of the High Power MOSFET?
A: The brand is REASUNOS. - Q: Where is the place of origin of the High Power MOSFET?
A: The place of origin is Guangdong, China. - Q: What is the price of the High Power MOSFET?
A: The price of the product is confirmed based on the product. - Q: What is the packaging detail for the High Power MOSFET?
A: The packaging detail is GB+Master Carton. - Q: What is the delivery time for the High Power MOSFET?
A: The delivery time is 2-30 days, depending on the total quantity. - Q: What are the payment terms for the High Power MOSFET?
A: The payment terms are 100% T/T in Advance (EXW). - Q: What is the supply ability of High Power MOSFET?
A: The supply ability is 5KK/month.
