Anti Surge Silicon Carbide SBD Multi Function For DC AC Inverter
Place of Origin | Guangdong, CN |
---|---|
Brand Name | REASUNOS |
Price | Confirm price based on product |
Packaging Details | Dustproof, waterproof, and anti-static tubular packaging, placed inside a cardboard box in cartons. |
Delivery Time | 2-30 days (Depends on Total Quantity) |
Payment Terms | 100% T/T in Advance(EXW) |
Supply Ability | 5KK/month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Silicon Carbide SBD/SiC SBD | Material | Silicon Carbide |
---|---|---|---|
Characteristics | Extremely Low Reverse Recovery Current, Strong Anti Surge Current Ability | Application | PFC Circuit , DC/AC Inverter For Solar And Wind Power Generation, UPS Power Supply, Motor Driver, Etc |
Device Type | Power Discrete Devices | Heat Resistance | High Temperature Resistance |
Frequency | High Frequency | Efficiency | High Efficiency |
Highlight | Anti Surge Silicon Carbide SBD,Inverter Silicon Carbide SBD,Multi Function SBD Sic |
No. | Part No. | VF(V)Typ (TA=25℃) | IF(A)TC=145℃(TA=25℃) | Typ IR(µA)(TA=25℃) | VR(V)(TA=25℃) | Package | MOQ(pcs) | |
---|---|---|---|---|---|---|---|---|
1 | RSS04065D | 1.4 | 4 | 1 | 650 | TO-252 | 2500 | |

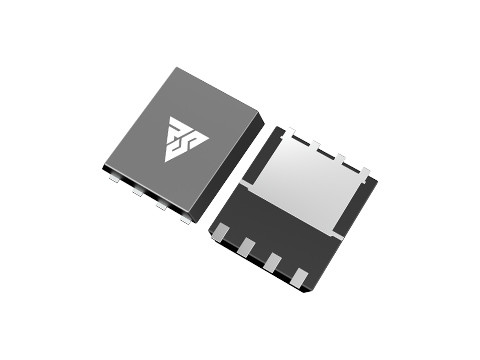

2 | RSS04065G | 1.4 | 4 | 1 | 650 | DFN5*6 | 5000 | |
3 | RSS04065A | 1.4 | 4 | 1 | 650 | TO-220-2L | 1000 | |
4 | RSS04065B | 1.4 | 4 | 1 | 650 | TO-220Internal insulation | 1000 | |
5 | RSS06065D | 1.36 | 6 | 1.2 | 650 | TO-252 | 2500 | |
6 | RSS06065G | 1.36 | 6 | 1.2 | 650 | DFN5*6 | 5000 | |
7 | RSS06065R | 1.36 | 6 | 1.2 | 650 | DFN8*8 | 260 | |
8 | RSS06065S | 1.36 | 6 | 1.2 | 650 | TO-263 | 800 | |
9 | RSS06065A | 1.36 | 6 | 1.2 | 650 | TO-220-2L | 1000 | |
10 | RSS06065B | 1.36 | 6 | 1.2 | 650 | TO-220Internal insulation | 1000 | |
11 | RSS08065D | 1.39 | 8 | 6 | 650 | TO-252 | 2500 | |
12 | RSS08065G | 1.39 | 8 | 6 | 650 | DFN5*6 | 5000 | |
13 | RSS08065R | 1.39 | 8 | 6 | 650 | DFN8*8 | 260 | |
14 | RSS08065S | 1.39 | 8 | 6 | 650 | TO-263 | 800 | |
15 | RSS08065A | 1.39 | 8 | 6 | 650 | TO-220-2L | 1000 | |
16 | RSS08065B | 1.39 | 8 | 6 | 650 | TO-220Internal insulation | 1000 | |
17 | RSS10065D | 1.37 | 10 | 5 | 650 | TO-252 | 2500 | |
18 | RSS10065R | 1.37 | 10 | 5 | 650 | DFN8*8 | 260 | |
19 | RSS10065S | 1.37 | 10 | 5 | 650 | TO-263 | 800 | |
20 | RSS10065A | 1.37 | 10 | 5 | 650 | TO-220-2L | 1000 | |
21 | RSS10065B | 1.37 | 10 | 5 | 650 | TO-220Internal insulation | 1000 | |
22 | RSS15065A | 1.4 | 15 | 2 | 650 | TO-220-2L | 1000 | |
23 | RSS20065A | 1.35 | 20 | 6 | 650 | TO-220-2L | 1000 | |
24 | RSS20065W | 1.45 | 20 | 5 | 650 | TO-247-2L | 600 | |
25 | RSS20065K | 1.37 | 20 | 5 | 650 | TO-247-3L | 600 | |
26 | RSS30065W | 1.5 | 30 | 2 | 650 | TO-247-2L | 600 | |
27 | RSS30065K | 1.4 | 30 | 1 | 650 | TO-247-3L | 600 | |
28 | RSS40065K | 1.35 | 40 | 6 | 650 | TO-247-3L | 600 | |
29 | RSS50065W | 1.5 | 50 | 2 | 650 | TO-247-2L | 600 | |
30 | RSS60065K | 1.5 | 60 | 2 | 650 | TO-247-3L | 600 | |
31 | RSS02120D | 1.38 | 2 | 1 | 1200 | TO-252 | 2500 | |
32 | RSS10120A | 1.43 | 10 | 2 | 1200 | TO-220-2L | 1000 | |
33 | RSS10120W | 1.43 | 10 | 2 | 1200 | TO-247-2L | 600 | |
34 | RSS15120W | 1.55 | 15 | 5 | 1200 | TO-247-2L | 600 | |
35 | RSS20120W | 1.45 | 20 | 2 | 1200 | TO-247-2L | 600 | |
36 | RSS20120K | 1.45 | 20 | 2 | 1200 | TO-247-3L | 600 | |
37 | RSS30120W | 1.5 | 30 | 5 | 1200 | TO-247-2L | 600 | |
38 | RSS30120K | 1.55 | 30 | 5 | 1200 | TO-247-3L | 600 | |
39 | RSS40120K | 1.45 | 40 | 2 | 1200 | TO-247-3L | 600 | |
40 | RSS40120W | 1.45 | 40 | 2 | 1200 | TO-247-2L | 600 | |
41 | RSS50120W | 1.4 | 50 | 30 | 1200 | TO-247-2L | 600 | |
42 | RSS25170W | 1.55 | 25 | 5 | 1700 | TO-247-2L | 600 | |
43 | RSS10200W | 1.45 | 10 | 8 | 2000 | TO-247-2L | 600 |
Silicon Carbide SBD for High Frequency Application
Product Description:
Silicon Carbide SBD is a power discrete device that is based on the national military standard production line, and the process is stable and the quality is reliable. It has an extremely low reverse recovery current and strong anti surge current ability. It is also known as Schottky rectifier diode, and they are silicon carbide Schottky diodes. Silicon Carbide SBDs offer excellent switching performance, low conduction loss, and low leakage current, making them ideal for power electronics applications such as UPS, solar energy, server power supplies, and others. Silicon Carbide SBDs are designed to provide high efficiency, long life, and low operating costs. They are also suitable for use in high temperature environments. In addition, Silicon Carbide SBDs have a wide operating temperature range and are available in a variety of packages.
Technical Parameters:
Parameter | Value |
---|---|
Product Name | Silicon Carbide SBD/SiC SBD |
Material | Silicon Carbide |
Device Type | Power Discrete Devices |
Heat Resistance | High Temperature Resistance |
Frequency | High Frequency |
Efficiency | High Efficiency |
Power | High Power |
Advantages | Based On The National Military Standard Production Line, The Process Is Stable And The Quality Is Reliable |
Application | PFC Circuit , DC/AC Inverter For Solar And Wind Power Generation, UPS Power Supply, Motor Driver, Etc |
Characteristics | Extremely Low Reverse Recovery Current, Strong Anti Surge Current Ability |
Applications:
REASUNOS SBD Silicon Carbide Schottky Rectifier Diodes are high-power, high-efficiency devices made from Silicon Carbide material. These devices are designed to offer superior performance in terms of heat resistance, efficiency and power, making them suitable for a wide range of applications. Manufactured in Guangdong, CN, these devices are packed in dustproof, waterproof, and anti-static tubular packaging, placed inside a cardboard box in cartons. With a supply ability of 5KK/month, the delivery time is usually between 2-30 days, depending on the total quantity. Prices are confirmed based on the product and payment terms are 100% T/T in Advance (EXW).
Support and Services:
Our team of experts provides technical support and services for Silicon Carbide SBD. We offer:
- 24/7 customer support
- On-site installation and maintenance
- Online troubleshooting and diagnostics
- Software and hardware upgrades
- Extended warranty coverage
Our team is dedicated to providing the highest quality of service possible. Contact us today for more information.
Packing and Shipping:
Silicon Carbide SBD Packaging and Shipping:
Silicon Carbide SBDs are packaged and shipped with utmost care to ensure the safety and integrity of the product. All products are packaged in air-tight, tamper-proof containers. The containers are then placed in sturdy cardboard boxes and secured with bubble wrap and packing tape. The boxes are then sealed and labeled with the product's name and weight. Finally, the product is shipped via a reliable courier service.
FAQ:
A1: The brand name of Silicon Carbide SBD is REASUNOS.
A2: The place of origin of Silicon Carbide SBD is Guangdong, CN.
A3: The price of Silicon Carbide SBD is confirm price based on product.
A4: Silicon Carbide SBD is packaged in dustproof, waterproof, and anti-static tubular packaging, placed inside a cardboard box in cartons.
A5: It takes 2-30 days to deliver Silicon Carbide SBD (depends on total quantity).
