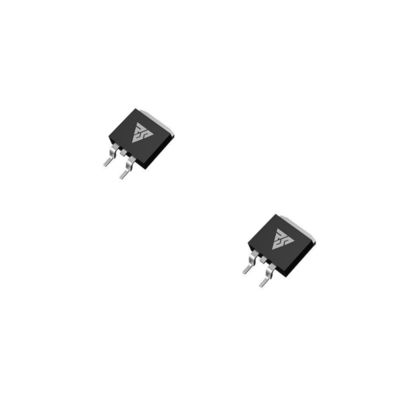

Durable 650V Silicon Carbide SBD Semiconductor Devices Practical
| Place of Origin | Guangdong, CN |
|---|---|
| Brand Name | REASUNOS |
| Price | Confirm price based on product |
| Packaging Details | Dustproof, waterproof, and anti-static tubular packaging, placed inside a cardboard box in cartons. |
| Delivery Time | 2-30 days (Depends on Total Quantity) |
| Payment Terms | 100% T/T in Advance(EXW) |
| Supply Ability | 5KK/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Efficiency | High Efficiency | Advantages | Based On The National Military Standard Production Line, The Process Is Stable And The Quality Is Reliable |
|---|---|---|---|
| Application | PFC Circuit , DC/AC Inverter For Solar And Wind Power Generation, UPS Power Supply, Motor Driver, Etc | Heat Resistance | High Temperature Resistance |
| Device Type | Power Discrete Devices | Frequency | High Frequency |
| Material | Silicon Carbide | Power | High Power |
| Highlight | Durable Silicon Carbide SBD,650V Silicon Carbide SBD,Practical Silicon Carbide Semiconductor Devices |
||
You can tick the products you need and communicate with us in the message board.
| No. | Part No. | VF（V）Typ (TA=25℃) | IF（A）TC=145℃(TA=25℃) | Typ IR（µA）(TA=25℃) | VR（V）(TA=25℃) | Package | MOQ(pcs) | |
|---|---|---|---|---|---|---|---|---|
| 1 | RSS04065D | 1.4 | 4 | 1 | 650 | TO-252 | 2500 | |
| 2 | RSS04065G | 1.4 | 4 | 1 | 650 | DFN5*6 | 5000 | |
| 3 | RSS04065A | 1.4 | 4 | 1 | 650 | TO-220-2L | 1000 | |
| 4 | RSS04065B | 1.4 | 4 | 1 | 650 | TO-220Internal insulation | 1000 | |
| 5 | RSS06065D | 1.36 | 6 | 1.2 | 650 | TO-252 | 2500 | |
| 6 | RSS06065G | 1.36 | 6 | 1.2 | 650 | DFN5*6 | 5000 | |
| 7 | RSS06065R | 1.36 | 6 | 1.2 | 650 | DFN8*8 | 260 | |
| 8 | RSS06065S | 1.36 | 6 | 1.2 | 650 | TO-263 | 800 | |
| 9 | RSS06065A | 1.36 | 6 | 1.2 | 650 | TO-220-2L | 1000 | |
| 10 | RSS06065B | 1.36 | 6 | 1.2 | 650 | TO-220Internal insulation | 1000 | |
| 11 | RSS08065D | 1.39 | 8 | 6 | 650 | TO-252 | 2500 | |
| 12 | RSS08065G | 1.39 | 8 | 6 | 650 | DFN5*6 | 5000 | |
| 13 | RSS08065R | 1.39 | 8 | 6 | 650 | DFN8*8 | 260 | |
| 14 | RSS08065S | 1.39 | 8 | 6 | 650 | TO-263 | 800 | |
| 15 | RSS08065A | 1.39 | 8 | 6 | 650 | TO-220-2L | 1000 | |
| 16 | RSS08065B | 1.39 | 8 | 6 | 650 | TO-220Internal insulation | 1000 | |
| 17 | RSS10065D | 1.37 | 10 | 5 | 650 | TO-252 | 2500 | |
| 18 | RSS10065R | 1.37 | 10 | 5 | 650 | DFN8*8 | 260 | |
| 19 | RSS10065S | 1.37 | 10 | 5 | 650 | TO-263 | 800 | |
| 20 | RSS10065A | 1.37 | 10 | 5 | 650 | TO-220-2L | 1000 | |
| 21 | RSS10065B | 1.37 | 10 | 5 | 650 | TO-220Internal insulation | 1000 | |
| 22 | RSS15065A | 1.4 | 15 | 2 | 650 | TO-220-2L | 1000 | |
| 23 | RSS20065A | 1.35 | 20 | 6 | 650 | TO-220-2L | 1000 | |
| 24 | RSS20065W | 1.45 | 20 | 5 | 650 | TO-247-2L | 600 | |
| 25 | RSS20065K | 1.37 | 20 | 5 | 650 | TO-247-3L | 600 | |
| 26 | RSS30065W | 1.5 | 30 | 2 | 650 | TO-247-2L | 600 | |
| 27 | RSS30065K | 1.4 | 30 | 1 | 650 | TO-247-3L | 600 | |
| 28 | RSS40065K | 1.35 | 40 | 6 | 650 | TO-247-3L | 600 | |
| 29 | RSS50065W | 1.5 | 50 | 2 | 650 | TO-247-2L | 600 | |
| 30 | RSS60065K | 1.5 | 60 | 2 | 650 | TO-247-3L | 600 | |
| 31 | RSS02120D | 1.38 | 2 | 1 | 1200 | TO-252 | 2500 | |
| 32 | RSS10120A | 1.43 | 10 | 2 | 1200 | TO-220-2L | 1000 | |
| 33 | RSS10120W | 1.43 | 10 | 2 | 1200 | TO-247-2L | 600 | |
| 34 | RSS15120W | 1.55 | 15 | 5 | 1200 | TO-247-2L | 600 | |
| 35 | RSS20120W | 1.45 | 20 | 2 | 1200 | TO-247-2L | 600 | |
| 36 | RSS20120K | 1.45 | 20 | 2 | 1200 | TO-247-3L | 600 | |
| 37 | RSS30120W | 1.5 | 30 | 5 | 1200 | TO-247-2L | 600 | |
| 38 | RSS30120K | 1.55 | 30 | 5 | 1200 | TO-247-3L | 600 | |
| 39 | RSS40120K | 1.45 | 40 | 2 | 1200 | TO-247-3L | 600 | |
| 40 | RSS40120W | 1.45 | 40 | 2 | 1200 | TO-247-2L | 600 | |
| 41 | RSS50120W | 1.4 | 50 | 30 | 1200 | TO-247-2L | 600 | |
| 42 | RSS25170W | 1.55 | 25 | 5 | 1700 | TO-247-2L | 600 | |
| 43 | RSS10200W | 1.45 | 10 | 8 | 2000 | TO-247-2L | 600 |
Product Description
Silicon Carbide SBD Power Discrete Devices for Sale
Product Description:
Silicon Carbide SBD is a semiconductor carbon diode and semiconductor carbon device that offers superior performance and reliability. This high temperature resistant device is designed for power discrete devices and high frequency applications. It is ideal for use in PFC circuits, DC/AC inverters for solar and wind power generation, UPS power supplies, motor drivers, and other applications. Carbon silicon diode offers an unparalleled combination of superior heat resistance, high frequency performance, and superior reliability. It is designed to meet the demanding requirements of modern power electronic systems.
Silicon Carbide SBD is an innovative and reliable semiconductor carbon diode and carbon silicon device. It is designed to offer outstanding heat resistance, high frequency performance, and superior reliability. It is perfect for applications such as PFC circuits, DC/AC inverters for solar and wind power generation, UPS power supplies, motor drivers, and other applications. The superior heat resistance and high frequency performance of Carbon Silicon Diode make it an ideal choice for modern power electronic systems.
The Silicon Carbide SBD is unique in its ability to deliver outstanding performance and reliability. It offers superior heat resistance, high frequency performance, and superior reliability. It is designed to meet the demanding requirements of modern power electronic systems. It is perfect for applications such as PFC circuits, DC/AC inverters for solar and wind power generation, UPS power supplies, motor drivers, and other applications.
Technical Parameters:
| Attribute | Parameter |
|---|---|
| Advantages | Based on the national military standard production line, the process is stable and the quality is reliable |
| Application | PFC circuit, DC/AC inverter for solar and wind power generation, UPS power supply, motor driver, etc |
| Material | Silicon Carbide |
| Characteristics | Extremely low reverse recovery current, strong anti surge current ability |
| Device Type | Power discrete devices |
| Power | High power |
| Efficiency | High efficiency |
| Frequency | High frequency |
| Product Name | Silicon Carbide SBD/SiC SBD |
| Heat Resistance | High temperature resistance |
| Semiconductor | Silicon Carbide Semiconductor |
| Carbon Diode | Semiconductor Carbon Diode |
| Silicon Carbide Diode | Silicon Carbide Diode |
Applications:
Silicon Carbide SBD is a high-performance Silicon Carbide device manufactured by REASUNOS. It is widely used in PFC Circuit, DC/AC Inverter for Solar and Wind Power Generation, UPS Power Supply, Motor Driver and other applications due to its extremely low reverse recovery current and strong anti surge current ability. Its features include high efficiency, high temperature resistance, and dustproof, waterproof, and anti-static tubular packaging.
SBD stands for silicon carbide diode, and REASUNOS is a brand name that is trusted for its superior quality, reliability and performance. The price of the product varies based on the quantity of the order. It has a delivery time of 2-30 days and the payment terms are 100% T/T in advance (EXW). The production capacity of REASUNOS is 5KK/month.
Silicon Carbide SBD is a must-have for power systems due to its unique characteristics. It is the optimal choice for applications that require high efficiency and reliability. With its advanced features, it ensures that your system will perform efficiently and reliably even in the most extreme conditions.
Support and Services:
Silicon Carbide SBD Technical Support and Service
We provide technical support and services for our Silicon Carbide SBD products. Our team of highly experienced engineers are available to answer any questions or provide advice on how to best use our products.
We offer several different support packages to meet your needs. These include:
- Telephone and email support.
- On-site technical support.
- Spare parts and replacement units.
- Software and firmware updates.
- Training and educational services.
If you have any questions or require assistance with our Silicon Carbide SBD products, please contact us and our team will be glad to help.
Packing and Shipping:
Silicon Carbide SBD Packaging and Shipping:
The Silicon Carbide SBD product is shipped in sealed bags or boxes for protection against dust, moisture, and damage during transportation. The package must be clearly labeled with the item name, quantity, and destination address. Special care must be taken when handling and storing Silicon Carbide SBD products to ensure product quality. Proper packaging and shipping procedures should be followed to ensure that the product arrives safely and intact.
FAQ:
Q1: What is Silicon Carbide SBD?
A1: Silicon Carbide SBD is a high-quality semiconductor material produced by REASUNOS, a leading brand of high-tech material in China. It has excellent performance such as high voltage resistance, high thermal conductivity, and low thermal expansion coefficient.
Q2: Where is REASUNOS Silicon Carbide SBD manufactured?
A2: REASUNOS Silicon Carbide SBD is manufactured in Guangdong, China.
Q3: What is the price of REASUNOS Silicon Carbide SBD?
A3: The price of REASUNOS Silicon Carbide SBD is based on the product. Please contact us for details.
Q4: How is REASUNOS Silicon Carbide SBD packaged?
A4: REASUNOS Silicon Carbide SBD is packaged in dustproof, waterproof, and anti-static tubular packaging, placed inside a cardboard box in cartons.
Q5: What is the delivery time of REASUNOS Silicon Carbide SBD?
A5: The delivery time of REASUNOS Silicon Carbide SBD is 2-30 days, depending on the total quantity.
