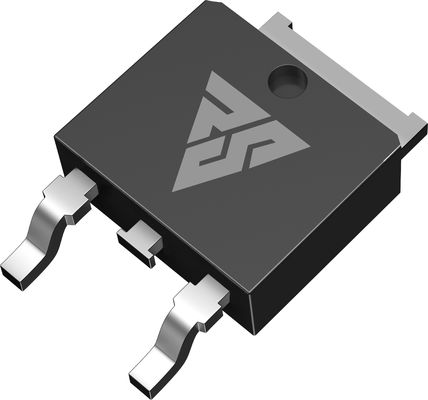

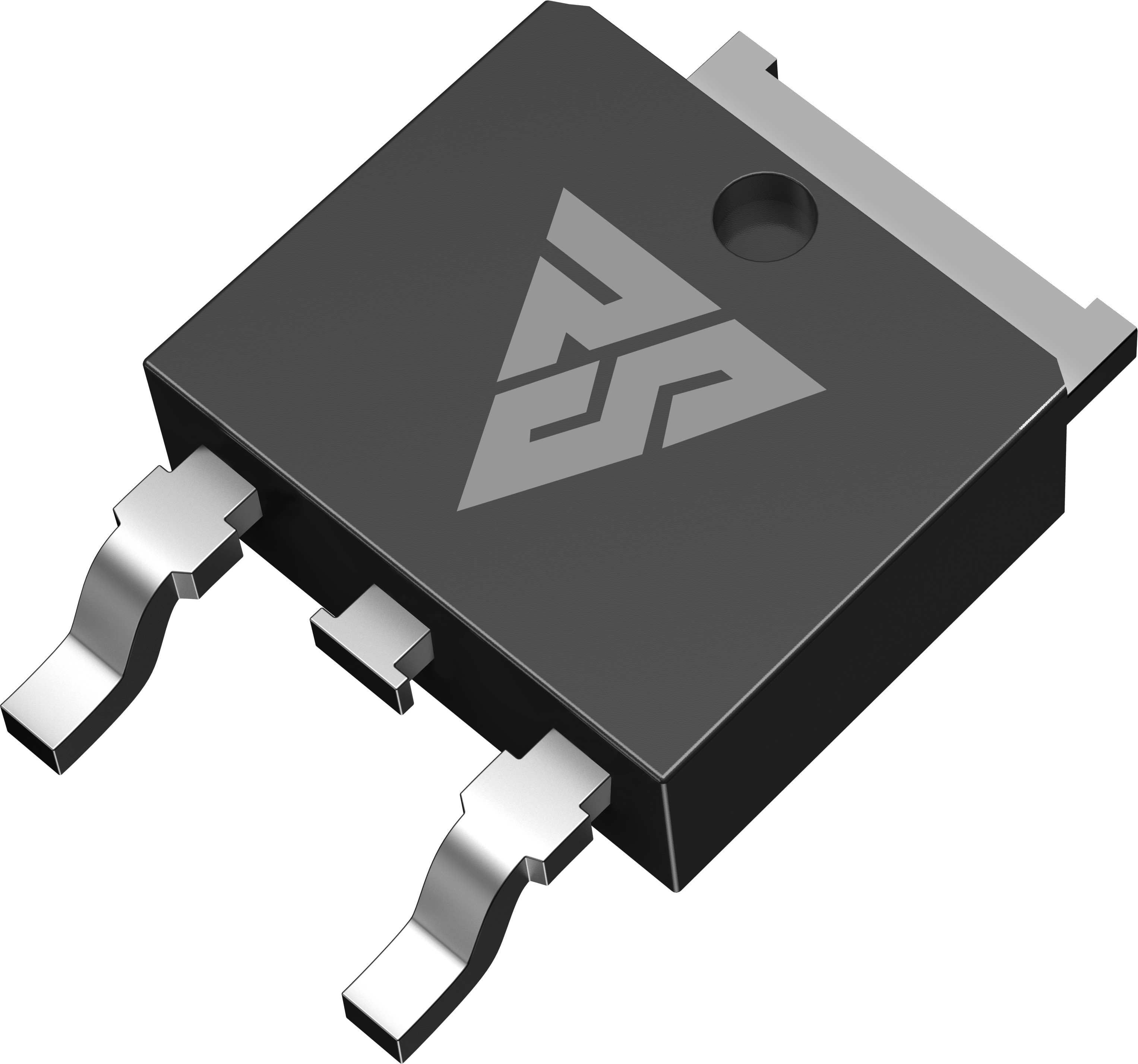

Anti EMI Super Junction MOSFET Stable Ultra Fast Switching For PFC Circuit
Place of Origin | Guangdong, CN |
---|---|
Brand Name | REASUNOS |
Price | Confirm price based on product |
Packaging Details | Dustproof, waterproof, and anti-static tubular packaging, placed inside a cardboard box in cartons |
Delivery Time | 2-30 days (Depends on Total Quantity) |
Payment Terms | 100% T/T in Advance(EXW) |
Supply Ability | 5KK/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xDevice Type | Power Discrete Devices | Product Name | Super Junction MOSFET/SJ MOSTET |
---|---|---|---|
Internal Resistance | Ultra Small Internal Resistance | Application | LED Driver, PFC Circuit, Switching Power Supply, UPS Of Continuous Power Supply System, New Energy Power Equipment, Etc |
Package | Ultra Small Package | EMI Margin | Large EMI Margin |
Capacitance | Ultra-low Junction Capacitance | Advantages | It Is Made By Multi-layer Epitaxy Process. Compared With Trench Process, It Has Excellent Anti EMI And Anti Surge Capabilities |
High Light | Anti EMI Super Junction MOSFET,Super Junction MOSFET Stable,PFC Circuit Ultra Fast Switching Mosfet |
No. | Part No. | Type | ID(A) | VDSS(V) | RDS(ON) Typ(mΩ) | RDS(ON) Max(mΩ) | Package | MOQ(pcs) | |
---|---|---|---|---|---|---|---|---|---|
1 | RSE60R190F | N | 17.6 | 600 | 165 | 190 | TO-220F | 1000 | |
2 | RSE60R190S | N | 17.6 | 600 | 165 | 190 | TO-263 | 800 | |
3 | RSE60R150F | N | 22 | 600 | 130 | 150 | TO-220F | 1000 | |
4 | RSF60R150F | N | 22 | 600 | 130 | 150 | TO-220F | 1000 | |
5 | RSF60R190F | N | 17.6 | 600 | 165 | 190 | TO-220F | 1000 | |
6 | RS60R130F | N | 30 | 600 | 110 | 130 | TO-220F | 1000 | |
7 | RS60R130W | N | 30 | 600 | 110 | 130 | TO247-3 | 600 | |
8 | RSF60R099F | N | 31 | 600 | 86 | 99 | TO-220F | 1000 | |
9 | RSF60R099W | N | 31 | 600 | 86 | 99 | TO247-3 | 600 | |
10 | RSF60R070W | N | 45 | 600 | 61 | 70 | TO247-3 | 600 | |
11 | RSF60R041W | N | 70 | 600 | 35 | 41 | TO247-3 | 600 | |
12 | RSF60R070F | N | 48 | 600 | 58 | 68 | TO-220F | 1000 | |
13 | RSF60R026W | N | 100 | 600 | 20 | 26 | TO247-3 | 600 | |
14 | RSU4N65D | N | 4 | 650 | 880 | 1000 | TO-252 | 2500 | |
15 | RSU7N65D | N | 7 | 650 | 560 | 650 | TO-252 | 2500 | |
16 | RSU7N65F | N | 7 | 650 | 560 | 650 | TO-220F | 1000 | |
17 | RS65R600D | N | 7.3 | 650 | 520 | 600 | TO-252 | 2500 | |
18 | RS65R600F | N | 7.3 | 650 | 520 | 600 | TO-220F | 1000 | |
19 | RSE65R550D | N | 7.6 | 650 | 480 | 550 | TO-252 | 2500 | |
20 | RSU12N65F | N | 12 | 650 | 380 | 420 | TO-220F | 1000 | |
21 | RS65R380D | N | 11 | 650 | 340 | 380 | TO-252 | 2500 | |
22 | RS65R380F | N | 11 | 650 | 340 | 380 | TO-220F | 1000 | |
23 | RS65R280D | N | 15 | 650 | 240 | 280 | TO-252 | 2500 | |
24 | RS65R280F | N | 15 | 650 | 240 | 280 | TO-220F | 1000 | |
25 | RSE65R210F | N | 16.8 | 650 | 185 | 210 | TO-220F | 1000 | |
26 | RS65R190F | N | 20 | 650 | 160 | 190 | TO-220F | 1000 | |
27 | RS65R190S | N | 20 | 650 | 160 | 190 | TO-263 | 800 | |
28 | RS65R190T | N | 20 | 650 | 160 | 190 | TO-220 | 1000 | |
29 | RSF65R190T | N | 20 | 650 | 170 | 190 | TO-220 | 1000 | |
30 | RSE65R180F | N | 22 | 650 | 150 | 180 | TO-220F | 1000 | |
31 | RSE65R165F | N | 20.4 | 650 | 145 | 165 | TO-220F | 1000 | |
32 | RSF65R130F | N | 26 | 650 | 115 | 130 | TO-220F | 1000 | |
33 | RSE70R600F | N | 7.3 | 700 | 520 | 600 | TO-220F | 1000 | |
34 | RSE70R420F | N | 11 | 700 | 365 | 420 | TO-220F | 1000 | |
35 | RSE70R360F | N | 12 | 700 | 315 | 360 | TO-220F | 1000 | |
36 | RSE80R850D | N | 7 | 800 | 740 | 850 | TO-252 | 2500 | |
37 | RS80R500F | N | 9 | 800 | 420 | 500 | TO-220F | 1000 | |
38 | RSE80R380F | N | 13 | 800 | 330 | 380 | TO-220F | 1000 | |
39 | RSE80R250F | N | 18 | 800 | 220 | 250 | TO-220F | 1000 |
Product Description:
Super Junction MOSFET is a power discrete device for LED Driver, PFC Circuit, Switching Power Supply, UPS Of Continuous Power Supply System, and New Energy Power Equipment. It is made by Multi-layer Epitaxy Process, which has excellent Anti EMI and Anti Surge Capabilities compared to Trench Process. It features an ultra-low Junction Capacitance and an ultra small package. Therefore, it is the ideal choice for SJ MOSFET, Super MOSFET, and Superjunction Power MOSFET applications.
Technical Parameters:
Parameters | Details |
---|---|
Product Name | Super Junction MOSFET/SJ MOSTET |
Type | N Type |
Application | LED Driver, PFC Circuit, Switching Power Supply, UPS Of Continuous Power Supply System, New Energy Power Equipment, Etc |
Device Type | Power Discrete Devices |
Package | Ultra Small Package |
Capacitance | Ultra-low Junction Capacitance |
Internal Resistance | Ultra Small Internal Resistance |
EMI Margin | Large EMI Margin |
Advantages | It Is Made By Multi-layer Epitaxy Process. Compared With Trench Process, It Has Excellent Anti EMI And Anti Surge Capabilities |
Applications:
REASUNOS Super Junction MOSFET is a Si super junction power MOSFET made in Guangdong, China. It has an ultra small internal resistance and ultra-low junction capacitance, and is suitable for LED driver, PFC circuit, switching power supply, UPS of continuous power supply system, and new energy power equipment. Its price is confirmed based on product, and its package is dustproof, waterproof, and anti-static tubular packaging, placed inside a cardboard box in cartons. The delivery time is 2-30 days (Depends on Total Quantity), and the payment terms are 100% T/T in Advance(EXW). REASUNOS can supply 5KK/month for Super Junction MOSFET with ultra small package type N.
Support and Services:
Super Junction MOSFET offers technical support and service to our customers.
Our expert team of engineers is available to answer any questions or concerns you may have about Super Junction MOSFET. We offer support via phone, email, and live chat.
We also offer on-site technical assistance for installation or troubleshooting. Our technicians are available to travel to your location to help you with any problems you may be having.
For more information about Super Junction MOSFET technical support and service, please contact us.
Packing and Shipping:
Super Junction MOSFET Packaging and Shipping
- Packaging: All Super Junction MOSFETs are packaged in ESD-safe, moisture-resistant bags.
- Shipping: All Super Junction MOSFETs are shipped via a reliable, fully-insured courier service.
FAQ:
- Q: What is Super Junction MOSFET?
- A: Super Junction MOSFET is a type of vertical MOSFET that uses a new structure, which can improve the conduction performance and reduce the on-resistance.
- Q: What is the Brand Name of Super Junction MOSFET?
- A: The Brand Name of Super Junction MOSFET is REASUNOS.
- Q: Where is Super Junction MOSFET made?
- A: Super Junction MOSFET is made in Guangdong, China.
- Q: What is the Price of Super Junction MOSFET?
- A: The Price of Super Junction MOSFET is based on the product itself and can be confirmed after confirming the product.
- Q: What is the Packaging Details of Super Junction MOSFET?
- A: Super Junction MOSFET is packed in dustproof, waterproof, and anti-static tubular packaging, placed inside a cardboard box in cartons.
- Q: How long is the Delivery Time of Super Junction MOSFET?
- A: The Delivery Time of Super Junction MOSFET is 2-30 days, depending on the total quantity.
