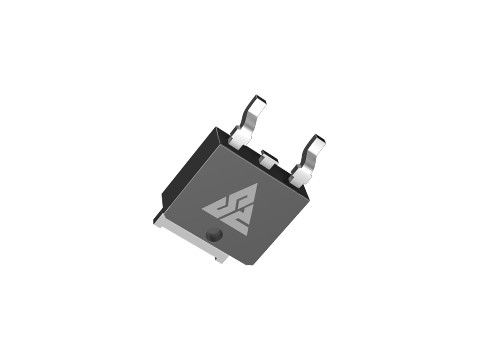

Stable Super Junction Fet Multi Layer For New Energy Power Equipment
Place of Origin | Guangdong, CN |
---|---|
Brand Name | REASUNOS |
Price | Confirm price based on product |
Packaging Details | Dustproof, waterproof, and anti-static tubular packaging, placed inside a cardboard box in cartons |
Delivery Time | 2-30 days (Depends on Total Quantity) |
Payment Terms | 100% T/T in Advance(EXW) |
Supply Ability | 5KK/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xType | N | Advantages | It Is Made By Multi-layer Epitaxy Process. Compared With Trench Process, It Has Excellent Anti EMI And Anti Surge Capabilities |
---|---|---|---|
Internal Resistance | Ultra Small Internal Resistance | Package | Ultra Small Package |
Device Type | Power Discrete Devices | Capacitance | Ultra-low Junction Capacitance |
Application | LED Driver, PFC Circuit, Switching Power Supply, UPS Of Continuous Power Supply System, New Energy Power Equipment, Etc | EMI Margin | Large EMI Margin |
High Light | Stable Super Junction Fet,Super Junction Fet Multi Layer,Equipment Super Junction Diode |
No. | Part No. | Type | ID(A) | VDSS(V) | RDS(ON) Typ(mΩ) | RDS(ON) Max(mΩ) | Package | MOQ(pcs) | |
---|---|---|---|---|---|---|---|---|---|
1 | RSE60R190F | N | 17.6 | 600 | 165 | 190 | TO-220F | 1000 | |
2 | RSE60R190S | N | 17.6 | 600 | 165 | 190 | TO-263 | 800 | |
3 | RSE60R150F | N | 22 | 600 | 130 | 150 | TO-220F | 1000 | |
4 | RSF60R150F | N | 22 | 600 | 130 | 150 | TO-220F | 1000 | |
5 | RSF60R190F | N | 17.6 | 600 | 165 | 190 | TO-220F | 1000 | |
6 | RS60R130F | N | 30 | 600 | 110 | 130 | TO-220F | 1000 | |
7 | RS60R130W | N | 30 | 600 | 110 | 130 | TO247-3 | 600 | |
8 | RSF60R099F | N | 31 | 600 | 86 | 99 | TO-220F | 1000 | |
9 | RSF60R099W | N | 31 | 600 | 86 | 99 | TO247-3 | 600 | |
10 | RSF60R070W | N | 45 | 600 | 61 | 70 | TO247-3 | 600 | |
11 | RSF60R041W | N | 70 | 600 | 35 | 41 | TO247-3 | 600 | |
12 | RSF60R070F | N | 48 | 600 | 58 | 68 | TO-220F | 1000 | |
13 | RSF60R026W | N | 100 | 600 | 20 | 26 | TO247-3 | 600 | |
14 | RSU4N65D | N | 4 | 650 | 880 | 1000 | TO-252 | 2500 | |
15 | RSU7N65D | N | 7 | 650 | 560 | 650 | TO-252 | 2500 | |
16 | RSU7N65F | N | 7 | 650 | 560 | 650 | TO-220F | 1000 | |
17 | RS65R600D | N | 7.3 | 650 | 520 | 600 | TO-252 | 2500 | |
18 | RS65R600F | N | 7.3 | 650 | 520 | 600 | TO-220F | 1000 | |
19 | RSE65R550D | N | 7.6 | 650 | 480 | 550 | TO-252 | 2500 | |
20 | RSU12N65F | N | 12 | 650 | 380 | 420 | TO-220F | 1000 | |
21 | RS65R380D | N | 11 | 650 | 340 | 380 | TO-252 | 2500 | |
22 | RS65R380F | N | 11 | 650 | 340 | 380 | TO-220F | 1000 | |
23 | RS65R280D | N | 15 | 650 | 240 | 280 | TO-252 | 2500 | |
24 | RS65R280F | N | 15 | 650 | 240 | 280 | TO-220F | 1000 | |
25 | RSE65R210F | N | 16.8 | 650 | 185 | 210 | TO-220F | 1000 | |
26 | RS65R190F | N | 20 | 650 | 160 | 190 | TO-220F | 1000 | |
27 | RS65R190S | N | 20 | 650 | 160 | 190 | TO-263 | 800 | |
28 | RS65R190T | N | 20 | 650 | 160 | 190 | TO-220 | 1000 | |
29 | RSF65R190T | N | 20 | 650 | 170 | 190 | TO-220 | 1000 | |
30 | RSE65R180F | N | 22 | 650 | 150 | 180 | TO-220F | 1000 | |
31 | RSE65R165F | N | 20.4 | 650 | 145 | 165 | TO-220F | 1000 | |
32 | RSF65R130F | N | 26 | 650 | 115 | 130 | TO-220F | 1000 | |
33 | RSE70R600F | N | 7.3 | 700 | 520 | 600 | TO-220F | 1000 | |
34 | RSE70R420F | N | 11 | 700 | 365 | 420 | TO-220F | 1000 | |
35 | RSE70R360F | N | 12 | 700 | 315 | 360 | TO-220F | 1000 | |
36 | RSE80R850D | N | 7 | 800 | 740 | 850 | TO-252 | 2500 | |
37 | RS80R500F | N | 9 | 800 | 420 | 500 | TO-220F | 1000 | |
38 | RSE80R380F | N | 13 | 800 | 330 | 380 | TO-220F | 1000 | |
39 | RSE80R250F | N | 18 | 800 | 220 | 250 | TO-220F | 1000 |
Super Junction MOSFET Power Discrete Devices for New Energy Power Equipment with Large EMI Margin
Product Description:
Super Junction Metal Oxide Field Effect Transistor (SJ MOSFET) is a type of advanced MOSFET with superior performance. It adopts the ultra small package design and is made of multi-layer epitaxy process, featuring ultra-low junction capacitance. It has excellent anti EMI and anti surge capabilities, providing a reliable performance in various applications such as LED driver, PFC circuit, switching power supply, UPS of continuous power supply system, new energy power equipment, etc.
The SJ MOSFET is based on a super mosfet package, with the advantages of ultra small size, low power consumption, and superior EMI and surge protection. The SJ MOSFET also offers high current capacity and low on-resistance. It is an ideal choice for applications requiring low junction capacitance. The SJ MOSFET provides the best solution for power systems and applications that require superior EMI and surge protection, as well as reliable and low on-resistance performance.
With its ultra-small package design and superior performance, the SJ MOSFET is ideal for a wide range of applications, such as LED driver, PFC circuit, switching power supply, UPS of continuous power supply system, new energy power equipment, etc. Its excellent anti EMI and anti surge capabilities make it an ideal choice for power systems and applications that require superior EMI and surge protection, as well as reliable and low on-resistance performance.
Technical Parameters:
Property | Value |
---|---|
Product Name | Super Junction MOSFET/SJ MOSTET |
Device Type | Power Discrete Devices |
Type | N |
Package | Ultra Small Package |
EMI Margin | Large EMI Margin |
Application | LED Driver, PFC Circuit, Switching Power Supply, UPS Of Continuous Power Supply System, New Energy Power Equipment, Etc. |
Capacitance | Ultra-low Junction Capacitance |
Internal Resistance | Ultra Small Internal Resistance |
Advantages | It Is Made By Multi-layer Epitaxy Process. Compared With Trench Process, It Has Excellent Anti EMI And Anti Surge Capabilities |
Applications:
Super Junction MOSFET, brand name REASUNOS, is an advanced semiconductor device manufactured in Guangdong, China. It is widely used in LED Driver, PFC Circuit, Switching Power Supply, UPS Of Continuous Power Supply System, New Energy Power Equipment, and other related applications. The SJ MOSFET features an ultra-low junction capacitance and provides excellent anti EMI and anti surge capabilities. Moreover, it is made by multi-layer epitaxy process, which has an ultra small internal resistance and is a great choice for power discrete devices. The price of this product is based on the total quantity. It is packed with dustproof, waterproof, and anti-static tubular packaging and placed inside a cardboard box in cartons. The delivery time is approximately 2-30 days. The supply ability is 5KK/month. Payment terms is 100% T/T in Advance(EXW).
Support and Services:
We offer comprehensive technical support and service for Super Junction MOSFET products to ensure that they can perform reliably and efficiently.
- Troubleshooting and diagnostics
- Repair and maintenance
- Replacement parts
- Software and firmware updates
- Technical advice and assistance
- Training and education
Our team of experienced technicians are available to assist you with any technical issues you may have. We are committed to providing the highest quality technical support and service, and are always here to help.
Packing and Shipping:
Super Junction MOSFETs are shipped in safe packaging that protects the device from any kind of damage during transit. They are shipped using standard methods such as airfreight, sea freight, and ground transportation. Each package is labeled with the product name, product number, and shipping address.
The packaging materials used for Super Junction MOSFETs are designed to provide superior protection. The packages are cushioned with foams and other materials to prevent any shock or vibration damage to the device. The packages are then sealed with strong tapes to ensure the integrity of the package.
The packages are tracked using barcode labels to ensure that they are delivered on time. The packages are also labeled with hazard warnings to warn the handler of any potential risks.
FAQ:
- Q: What is Super Junction MOSFET?
- A: Super Junction MOSFET is a type of power MOSFET with improved electrical characteristics, which provides low on-resistance, low gate charge and low input capacitance.
- Q: What is the brand name of Super Junction MOSFET?
- A: The brand name of Super Junction MOSFET is REASUNOS.
- Q: Where is the product place of origin?
- A: The product place of origin is Guangdong, China.
- Q: What is the price of Super Junction MOSFET?
- A: The price of Super Junction MOSFET is confirmed based on the product.
- Q: What kind of packaging do you provide for Super Junction MOSFET?
- A: We provide dustproof, waterproof, and anti-static tubular packaging, placed inside a cardboard box in cartons for Super Junction MOSFET.
- Q: What is the delivery time for Super Junction MOSFET?
- A: The delivery time for Super Junction MOSFET is 2-30 days, which depends on the total quantity.
- Q: What are the payment terms for Super Junction MOSFET?
- A: The payment terms for Super Junction MOSFET is 100% T/T in Advance (EXW).
- Q: What is the supply ability of Super Junction MOSFET?
- A: The supply ability of Super Junction MOSFET is 5KK/month.
