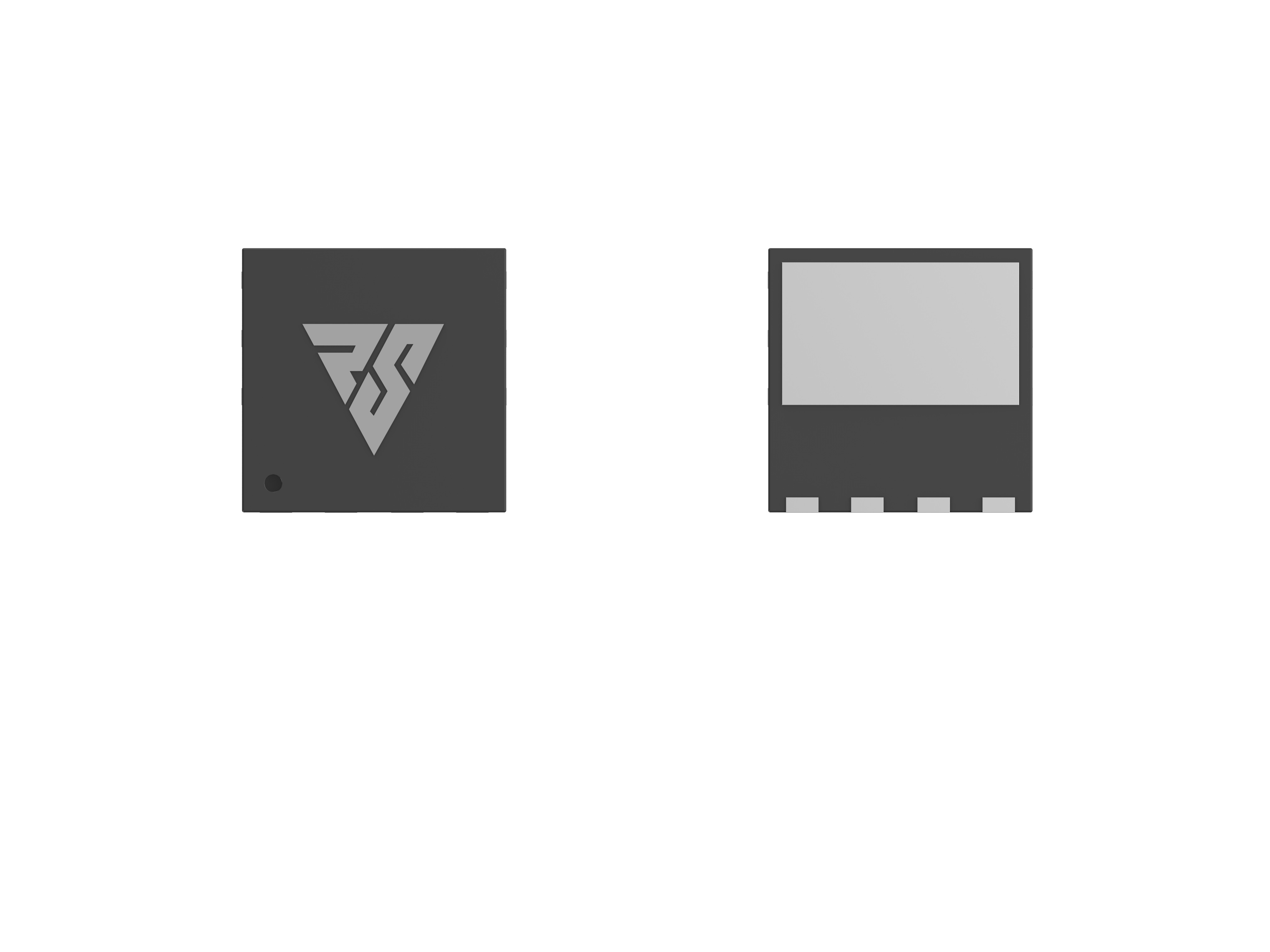

Multipurpose SBD Mosfet , Durable Surface Mount Schottky Barrier Rectifier
Place of Origin | Guangdong, CN |
---|---|
Brand Name | REASUNOS |
Price | Confirm price based on product |
Packaging Details | Dustproof, waterproof, and anti-static tubular packaging, placed inside a cardboard box in cartons. |
Delivery Time | 2-30 days (Depends on Total Quantity) |
Payment Terms | 100% T/T in Advance(EXW) |
Supply Ability | 5KK/month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCharacteristics | Extremely Low Reverse Recovery Current, Strong Anti Surge Current Ability | Frequency | High Frequency |
---|---|---|---|
Material | Silicon Carbide | Product Name | Silicon Carbide SBD/SiC SBD |
Heat Resistance | High Temperature Resistance | Power | High Power |
Advantages | Based On The National Military Standard Production Line, The Process Is Stable And The Quality Is Reliable | Efficiency | High Efficiency |
Highlight | Multipurpose SBD Mosfet,Surface Mount SBD Mosfet,Durable Surface Mount Schottky Barrier Rectifier |
No. | Part No. | VF(V)Typ (TA=25℃) | IF(A)TC=145℃(TA=25℃) | Typ IR(µA)(TA=25℃) | VR(V)(TA=25℃) | Package | MOQ(pcs) | |
---|---|---|---|---|---|---|---|---|
1 | RSS04065D | 1.4 | 4 | 1 | 650 | TO-252 | 2500 | |
2 | RSS04065G | 1.4 | 4 | 1 | 650 | DFN5*6 | 5000 | |
3 | RSS04065A | 1.4 | 4 | 1 | 650 | TO-220-2L | 1000 | |
4 | RSS04065B | 1.4 | 4 | 1 | 650 | TO-220Internal insulation | 1000 | |
5 | RSS06065D | 1.36 | 6 | 1.2 | 650 | TO-252 | 2500 | |
6 | RSS06065G | 1.36 | 6 | 1.2 | 650 | DFN5*6 | 5000 | |
7 | RSS06065R | 1.36 | 6 | 1.2 | 650 | DFN8*8 | 260 | |
8 | RSS06065S | 1.36 | 6 | 1.2 | 650 | TO-263 | 800 | |
9 | RSS06065A | 1.36 | 6 | 1.2 | 650 | TO-220-2L | 1000 | |
10 | RSS06065B | 1.36 | 6 | 1.2 | 650 | TO-220Internal insulation | 1000 | |
11 | RSS08065D | 1.39 | 8 | 6 | 650 | TO-252 | 2500 | |
12 | RSS08065G | 1.39 | 8 | 6 | 650 | DFN5*6 | 5000 | |
13 | RSS08065R | 1.39 | 8 | 6 | 650 | DFN8*8 | 260 | |
14 | RSS08065S | 1.39 | 8 | 6 | 650 | TO-263 | 800 | |
15 | RSS08065A | 1.39 | 8 | 6 | 650 | TO-220-2L | 1000 | |
16 | RSS08065B | 1.39 | 8 | 6 | 650 | TO-220Internal insulation | 1000 | |
17 | RSS10065D | 1.37 | 10 | 5 | 650 | TO-252 | 2500 | |
18 | RSS10065R | 1.37 | 10 | 5 | 650 | DFN8*8 | 260 | |
19 | RSS10065S | 1.37 | 10 | 5 | 650 | TO-263 | 800 | |
20 | RSS10065A | 1.37 | 10 | 5 | 650 | TO-220-2L | 1000 | |
21 | RSS10065B | 1.37 | 10 | 5 | 650 | TO-220Internal insulation | 1000 | |
22 | RSS15065A | 1.4 | 15 | 2 | 650 | TO-220-2L | 1000 | |
23 | RSS20065A | 1.35 | 20 | 6 | 650 | TO-220-2L | 1000 | |
24 | RSS20065W | 1.45 | 20 | 5 | 650 | TO-247-2L | 600 | |
25 | RSS20065K | 1.37 | 20 | 5 | 650 | TO-247-3L | 600 | |
26 | RSS30065W | 1.5 | 30 | 2 | 650 | TO-247-2L | 600 | |
27 | RSS30065K | 1.4 | 30 | 1 | 650 | TO-247-3L | 600 | |
28 | RSS40065K | 1.35 | 40 | 6 | 650 | TO-247-3L | 600 | |
29 | RSS50065W | 1.5 | 50 | 2 | 650 | TO-247-2L | 600 | |
30 | RSS60065K | 1.5 | 60 | 2 | 650 | TO-247-3L | 600 | |
31 | RSS02120D | 1.38 | 2 | 1 | 1200 | TO-252 | 2500 | |
32 | RSS10120A | 1.43 | 10 | 2 | 1200 | TO-220-2L | 1000 | |
33 | RSS10120W | 1.43 | 10 | 2 | 1200 | TO-247-2L | 600 | |
34 | RSS15120W | 1.55 | 15 | 5 | 1200 | TO-247-2L | 600 | |
35 | RSS20120W | 1.45 | 20 | 2 | 1200 | TO-247-2L | 600 | |
36 | RSS20120K | 1.45 | 20 | 2 | 1200 | TO-247-3L | 600 | |
37 | RSS30120W | 1.5 | 30 | 5 | 1200 | TO-247-2L | 600 | |
38 | RSS30120K | 1.55 | 30 | 5 | 1200 | TO-247-3L | 600 | |
39 | RSS40120K | 1.45 | 40 | 2 | 1200 | TO-247-3L | 600 | |
40 | RSS40120W | 1.45 | 40 | 2 | 1200 | TO-247-2L | 600 | |
41 | RSS50120W | 1.4 | 50 | 30 | 1200 | TO-247-2L | 600 | |
42 | RSS25170W | 1.55 | 25 | 5 | 1700 | TO-247-2L | 600 | |
43 | RSS10200W | 1.45 | 10 | 8 | 2000 | TO-247-2L | 600 |
Product Description:
Silicon Carbide SBD (also known as Silicon Carbide Schottky Rectifier Diode or Silicon Carbide Schottky Diode) is a power discrete device made of Silicon Carbide material. It features an extremely low reverse recovery current, strong anti surge current ability and high efficiency. This makes it ideal for use in power electronics applications.
The Silicon Carbide SBD has a temperature coefficient of -2mV/K, a maximum junction operating temperature of 175°C, and a reverse breakdown voltage of up to 650V. It also offers low capacitance and low on-state resistance for faster switching and higher power density. The device is also highly reliable and provides excellent thermal stability.
The Silicon Carbide SBD has a wide range of applications in power electronics including solar power systems, hybrid electric vehicles, motor control, power supplies, and energy storage systems. It can also be used in industrial and consumer electronics.
Technical Parameters:
Parameters | Details |
---|---|
Heat Resistance | High Temperature Resistance |
Power | High Power |
Frequency | High Frequency |
Device Type | Power Discrete Devices |
Characteristics | Extremely Low Reverse Recovery Current, Strong Anti Surge Current Ability |
Advantages | Based On The National Military Standard Production Line, The Process Is Stable And The Quality Is Reliable |
Efficiency | High Efficiency |
Product Name | Silicon Carbide SBD/SiC SBD |
Application | PFC Circuit , DC/AC Inverter For Solar And Wind Power Generation, UPS Power Supply, Motor Driver, Etc |
Material | Silicon Carbide |
Keywords | SiC SBD, SiC SBD, SiC Schottky Barrier Diode |
Applications:
REASUNOS Silicon Carbide Schottky Barrier Diode (SiC SBD) is a power discrete device made of high-quality silicon carbide material. It has high power, high frequency, and excellent stability. Based on the national military standard production line, the process is stable and the quality is reliable. The packaging of the product is dustproof, waterproof and anti-static tubular packaging, placed inside a cardboard box in cartons. The price is confirmed after the product is purchased. The delivery time is 2-30 days, depending on the total quantity. The payment terms are 100% T/T in advance (EXW). The supply ability is 5KK/month.
Silicon Carbide SBD has a wide range of applications in various industries. It can be used for high-frequency switching power supplies, motor drives, power amplifiers, voltage regulators, power converters, DC-DC converters, etc. It is also used in the aerospace industry for high power, high frequency, and high-reliability applications, such as power converters, motor drives, radar systems, and avionics systems. In the automotive industry, Silicon Carbide SBD is widely used in power modules, such as electric vehicles, hybrid electric vehicles and solar photovoltaic systems. In addition, Silicon Carbide SBD can also be used in industrial applications, such as variable speed drives, uninterruptible power supplies, and motor controllers.
Support and Services:
Silicon Carbide SBD provides technical support and services to ensure smooth operation, performance optimization, and product maintenance. Our technical experts are available to provide assistance and answer any questions. Our services include:
- System integration, setup, and installation
- Troubleshooting and problem resolution
- Software updates and upgrades
- Hardware maintenance and repairs
- Continuous product support and training
Packing and Shipping:
Silicon Carbide SBD is generally packaged and shipped in accordance with the following specifications:
- Packaging: Standard boxes with anti-static material
- Shipping: Air freight or sea freight as requested
FAQ:
- Q1: What is Silicon Carbide SBD?
- A1: Silicon Carbide SBD is a semiconductor device produced by REASUNOS, a specialty manufacturer based in Guangdong, China. It is widely used in power electronic devices such as rectifiers, inverters, and motor control systems.
- Q2: What are the features of Silicon Carbide SBD?
- A2: Silicon Carbide SBD has a wide operating temperature range and can withstand high temperatures, making it suitable for harsh environments. It also has very low on-resistance, fast switching speed, and excellent thermal stability.
- Q3: How much does Silicon Carbide SBD cost?
- A3: The price of Silicon Carbide SBD depends on the product. Please contact REASUNOS for more information.
- Q4: How is Silicon Carbide SBD packaged?
- A4: Silicon Carbide SBD is packaged in dustproof, waterproof, and anti-static tubular packaging, placed inside a cardboard box in cartons.
- Q5: What is the delivery time for Silicon Carbide SBD?
- A5: The delivery time for Silicon Carbide SBD is 2-30 days, depending on the total quantity. Payment terms are 100% T/T in Advance (EXW). REASUNOS has a monthly supply capacity of 5KK units.
